Is polyester tape the same as Kapton tape？
In the world of industrial tapes, two materials have gained significant attention: polyester tape and Kapton tape. While they may appear similar at first glance, these two tapes possess distinct properties and applications. In this article, we will delve into the nuances that set them apart, helping you make an informed decision when choosing the right tape for your needs.
Polyester tape, also known as PET tape, is a versatile and widely used adhesive tape. It is made from a thin, flexible polyester film that is coated with a pressure-sensitive adhesive. Polyester tape is known for its excellent tensile strength, dimensional stability, and resistance to chemicals and solvents. It is commonly used in a variety of applications, including:
· Electrical insulation
· Masking and protection during painting or coating processes
· Bundling and securing cables and wires
· General purpose bonding and sealing
Polyester tape is a cost-effective solution and is available in a range of colors, thicknesses, and adhesive strengths to suit different needs.

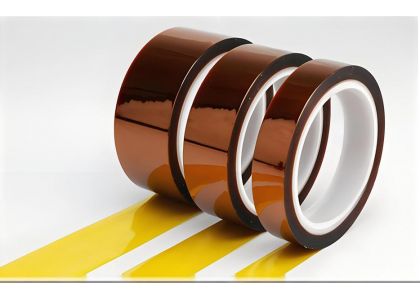

Kapton tape, on the other hand, is a specialized tape made from a polyimide film. Polyimide, also known as PI, is a high-performance polymer that offers exceptional thermal and electrical properties. Kapton tape is renowned for its ability to withstand high temperatures, making it a popular choice in industries where heat resistance is crucial.
Some of the key features of Kapton tape include:
· Excellent heat resistance, with a continuous operating temperature range of -269°C to 400°C
· Exceptional electrical insulation properties
· Resistance to chemicals, solvents, and radiation
· Flexibility and conformability
Kapton tape is commonly used in applications such as:
· Electrical and electronic component insulation
· Thermal management in aerospace and electronics
· Masking and protection during high-temperature processes
· Cryogenic applications
While both polyester tape and Kapton tape serve as adhesive tapes, they differ in several key aspects:
Temperature Resistance: Kapton tape is the clear winner when it comes to temperature resistance, with a much higher continuous operating temperature range compared to polyester tape. This makes Kapton tape the preferred choice for high-temperature applications.
Electrical Properties: Kapton tape offers superior electrical insulation properties, making it a better choice for applications where electrical isolation is critical, such as in electronics and electrical equipment.
Chemical Resistance: Both tapes exhibit good chemical resistance, but Kapton tape generally has a slight edge in terms of its ability to withstand a wider range of solvents and chemicals.
Flexibility and Conformability: Polyester tape is generally more flexible and conformable, making it easier to apply to irregular surfaces or tight spaces. Kapton tape, while still flexible, may be slightly stiffer.
Cost: Polyester tape is typically more cost-effective than Kapton tape, making it a more budget-friendly option for general-purpose applications.
When deciding between polyester tape and Kapton tape, it's essential to consider the specific requirements of your application. If you need a tape that can withstand high temperatures, Kapton tape is the clear choice. However, if your application doesn't require such extreme temperature resistance, polyester tape may be a more cost-effective solution.
It's also worth noting that there are other specialized tapes available, such as high-temperature silicone tape and polyimide tape, which may be suitable for certain applications. Consulting with a polyimide tape manufacturer or a tape expert can help you determine the best tape for your needs.
In the world of industrial tapes, polyester tape and Kapton tape each have their own unique strengths and applications. While they may appear similar, the key differences in temperature resistance, electrical properties, and cost make them suitable for different scenarios. By understanding these distinctions, you can make an informed decision and select the tape that best meets the requirements of your project.
