Glass Cloth Electrical Tape for Motors, Coils and Transformers

Our glass cloth tape range includes two constructions for electrical insulation, coil holding and mechanical protection: PET Fiberglass Cloth Tape and woven glass cloth electrical tape.

PET Fiberglass Cloth Tape – J-380 Series

The J-380 series combines a PET-based electrical tape structure with fiberglass reinforcement and acrylic pressure-sensitive adhesive. It is designed for coil banding, lead anchoring, transformer assembly and insulation-layer holding where low elongation and mechanical holding strength are required.

Woven Glass Cloth Electrical Tape – J-400/J-410/J-430 Series

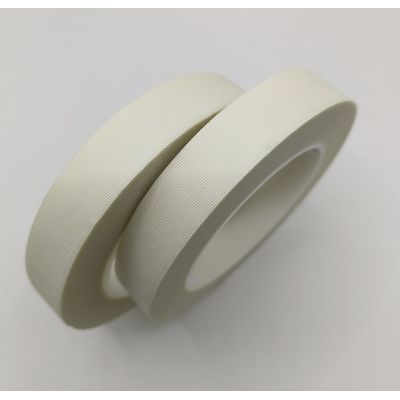

The woven glass cloth series is available with rubber, acrylic or silicone adhesive systems. J-430 Glass Cloth Tape uses silicone adhesive and is intended for motor lead insulation, transformer and coil wrapping, abrasion protection and higher-temperature electrical applications.

For product selection, buyers should evaluate operating temperature, dielectric requirements, tensile load, adhesive chemistry, surface material and compatibility with varnish, resin or transformer oil. Our electrical insulation tape selection guide provides a broader comparison of glass cloth, PET, polyimide and filament-reinforced tapes.

Standard and custom slit widths can be evaluated according to winding equipment and production requirements. Learn more about our glass cloth tape manufacturing and custom converting capabilities.

Technical values should be confirmed against the current product datasheet. Sample testing under actual winding, heating and impregnation conditions is recommended before volume purchasing or insulation-system approval.
